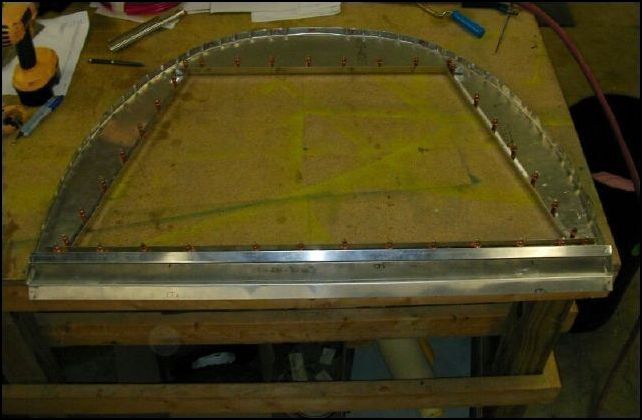

Cut out the baggage compartment center. Make this cut-out slightly larger than the inside of the L's so that the radius of the L's will be past the cut-out. Drill and cleco the L's to the bulkhead A4 P40.
Cut out the baggage compartment center. Make this cut-out slightly larger than the inside of the L's so that the radius of the L's will be past the cut-out. Drill and cleco the L's to the bulkhead A4 P40.
