CH-640 Fuselage Front Z and torque tube tunnel (2 of 70)
![[First]](../images/bl_first.gif)
|
![[Prev]](../images/bl_prev.gif)
|
![[Home]](../images/bl_home.gif)
|
![[Index]](../images/bl_index.gif)
|
![[Next]](../images/bl_next.gif)
|
![[Last]](../images/bl_last.gif)
|
|

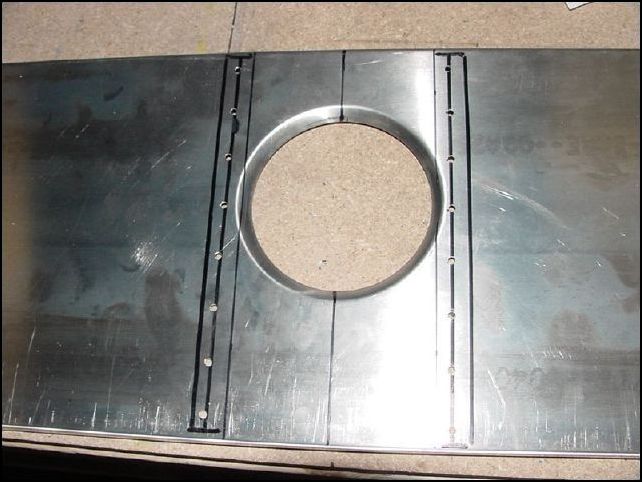

| Position 20-F-15-2 (torque tube support side wall) to the forward Z and draw a line to mark the edge of it's flange. Mark and drill 8 A5 rivet holes P31 for both the left and right supports. |
|
|
|
|
|
|
|
