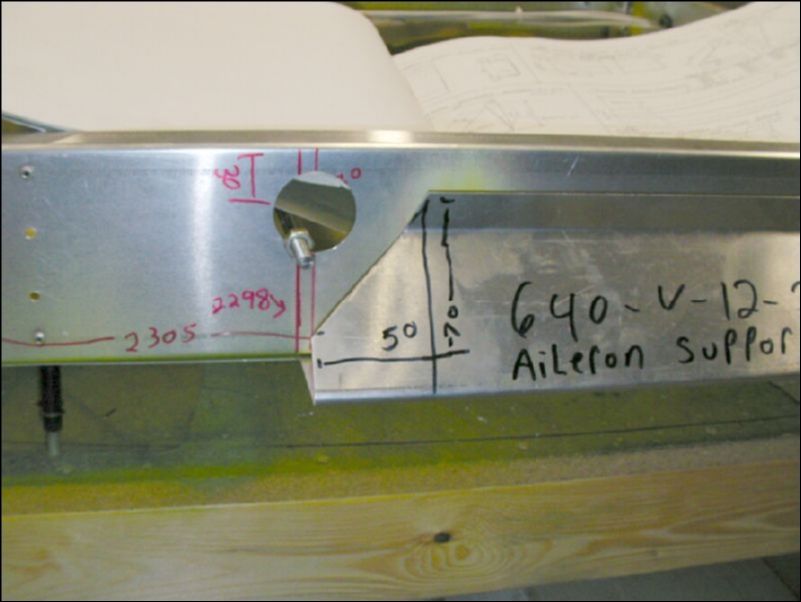

| Mark and cut I.B. end of aileron support channel. When this part is installed you will line the edge of it up at 2298 mm from the I.B. end of the wing. This image shows it at 2305 but I correct this before drilling my rivet holes. |
|
|
|
|
|
|
|
