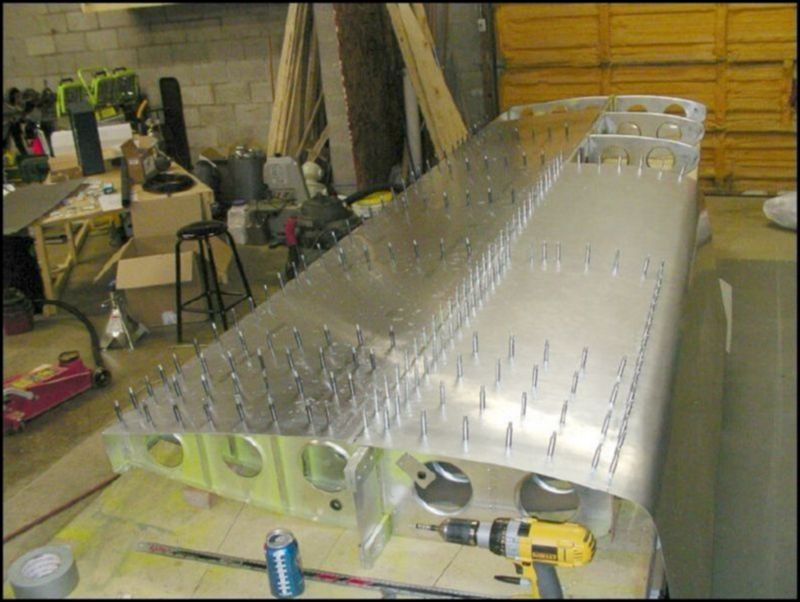

| Drill and cleco the bottom of the IB front skin. Pay close attention to the rivet pitch for this area. It is P30 from rib 1 to rib 4 and then P32 from rib 4 to rib 6. |
|
|
|
|
|
|
|
