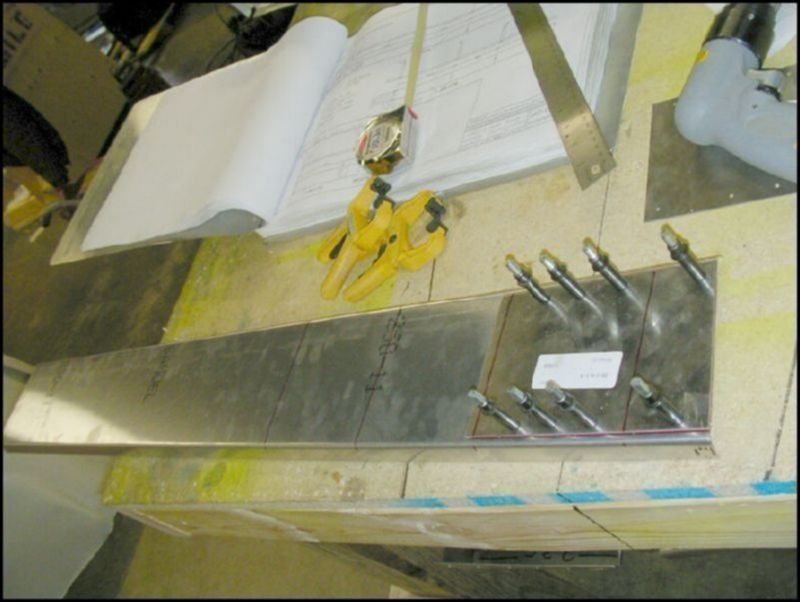

Position, drill and cleco the front channel doubler (20-V-9-3) to the front channel (20-V-9-2). Trim the end of the front channel to be flush with the doubler's angle.
Position, drill and cleco the front channel doubler (20-V-9-3) to the front channel (20-V-9-2). Trim the end of the front channel to be flush with the doubler's angle.
