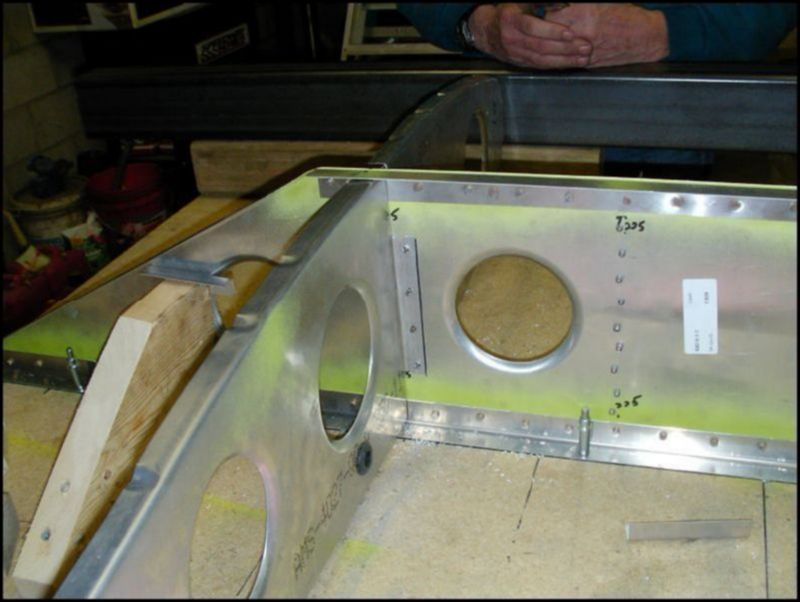

| Rear rib 10 is only held to the wing extensions with it's flange. Again, I don't know why but the drawings do not show an L on the other side of this rib like the rest of them. BE SURE to install this rib perfectly square. |
|
|
|
|
|
|
|
