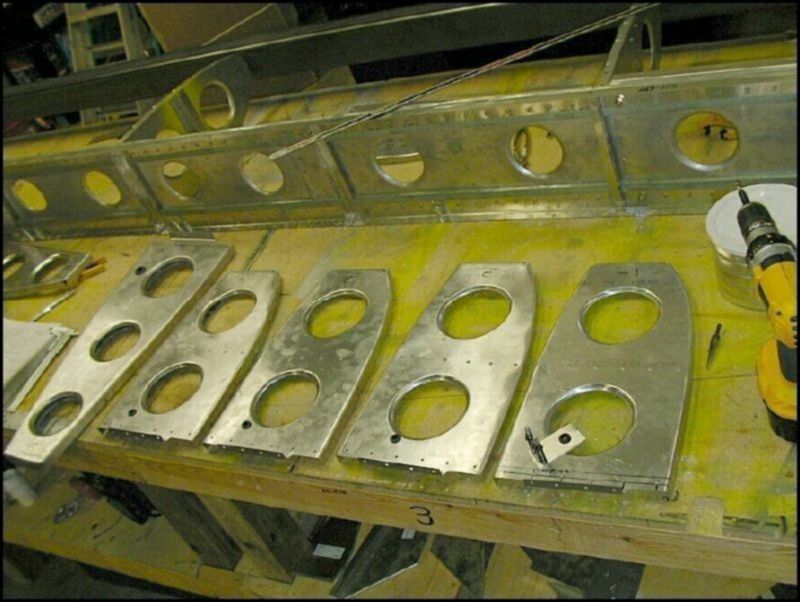

| Drill fuel line holes in nose ribs 1 - 5. Install grommets in the holes for ribs 1 - 4. Note: you need to make a stand off bracket for rib 1 since the hole would be in the middle of the lightening hole. This image only shows ribs 1 - 4, the first rib to the left of the image is a rear rib with the hole for the wires drilled. |
|
|
|
|
|
|
|
