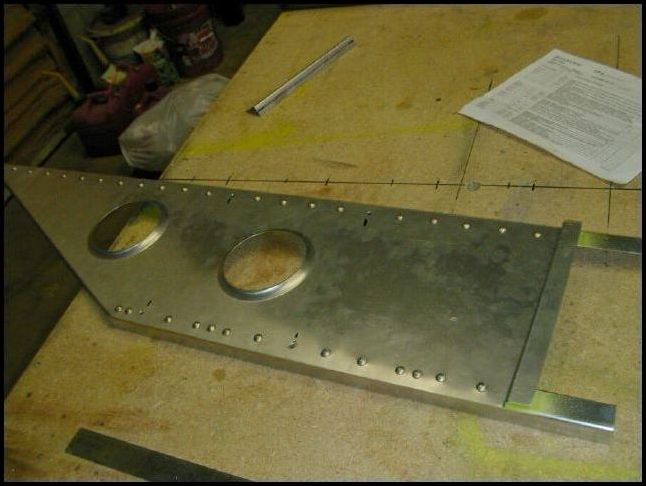

Rivet the upper and lower spar cap angles to the wing tip extension. I used solid rivets AD6 but the drawings show that you can use A5 rivets.
Rivet the upper and lower spar cap angles to the wing tip extension. I used solid rivets AD6 but the drawings show that you can use A5 rivets.
