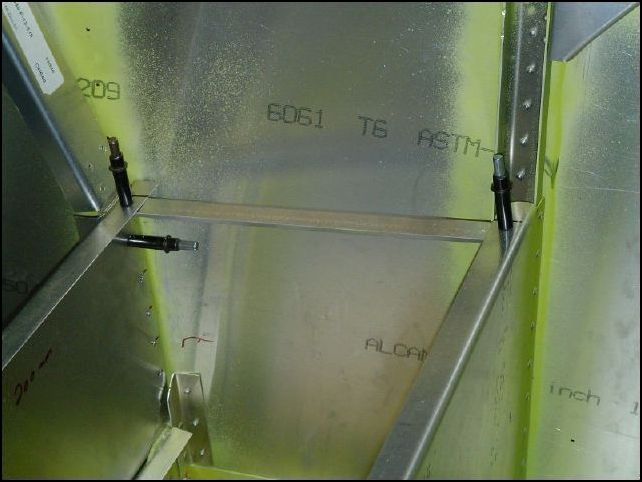

| Cut two standard Ls to fit between the rear and front seat supports. Drill and cleco them at both sides to support the seat panel. NOTE: the IPL says to rivet them to the side skins, however the seat panel does not reach the side skins so if you follow the IPL then these will not support anything. Move them in toward the center so that they will support the sides of the seat panel. |
|
|
|
|
|
|
|
