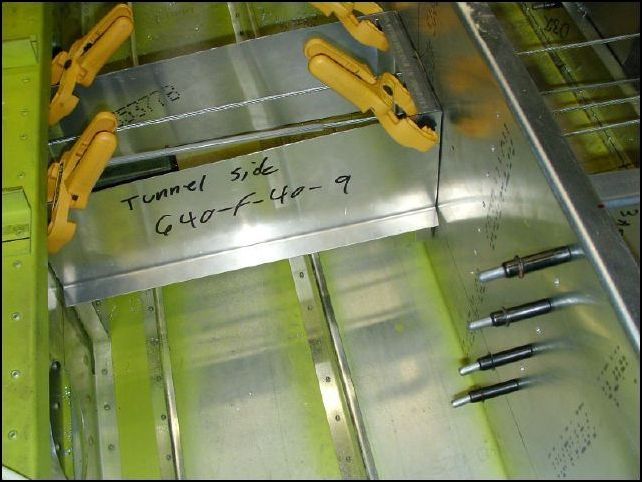

Trim the tunnel sides (640-F-40-9) to fit between the front seat support and the main spar. Clamp them in place. The bottom of these should be flush with the location of the rear seat floor wich is shown as 150 mm at the main spar and 140 mm at the front rear seat support from the bottom fuselage skin.
Trim the tunnel sides (640-F-40-9) to fit between the front seat support and the main spar. Clamp them in place. The bottom of these should be flush with the location of the rear seat floor wich is shown as 150 mm at the main spar and 140 mm at the front rear seat support from the bottom fuselage skin.
