CH-640 Fuselage Hull - Stage One - Part Two (153 of 198)

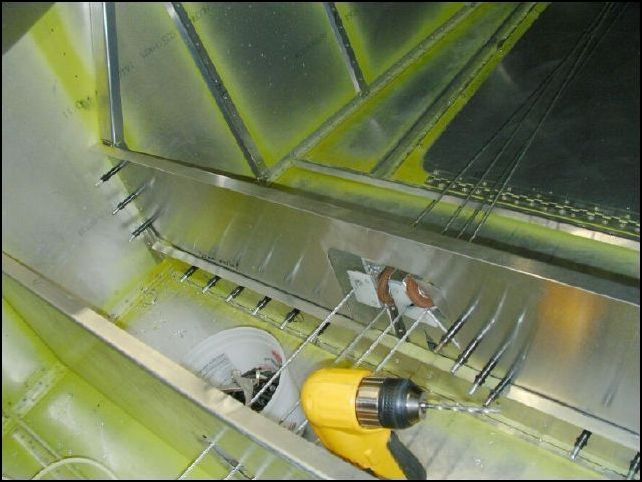

Position the rear seat rear support to the rear of the rear spar. WOW, that is a lot of rears <grin>. This should overlap the rear spar by 20 mm and the top should be 280mm from the floor. Drill and cleco A5 P30 to the rear spar and spar uprights. I also drilled rivet holes in the pulley assembly to help stiffen the assembly.
