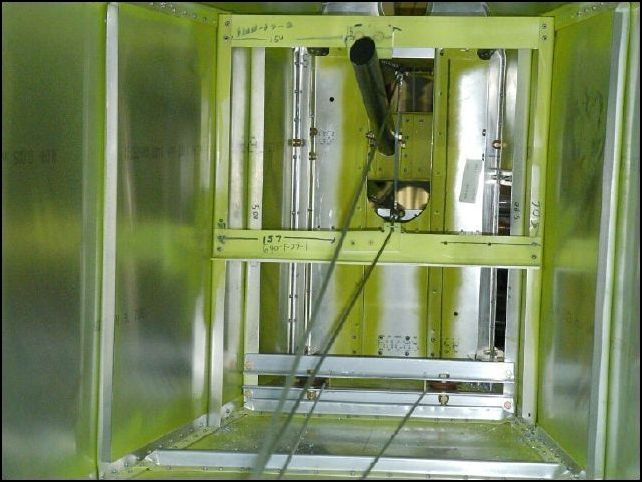

I moved my lower horizontal tail stop down. Now the lower horizontal tail control cable goes above the stop like the drawings show that it should. I found that the rear of my fuselage was sagging because I have it off the back of the table and I have my rudder installed. When you install the rudder it pushes the top longerons up but since I had no support back there it pushed my lower longerons down. OOOPS. This has been corrected now and all adjustments have been made again.
I moved my lower horizontal tail stop down. Now the lower horizontal tail control cable goes above the stop like the drawings show that it should. I found that the rear of my fuselage was sagging because I have it off the back of the table and I have my rudder installed. When you install the rudder it pushes the top longerons up but since I had no support back there it pushed my lower longerons down. OOOPS. This has been corrected now and all adjustments have been made again.
