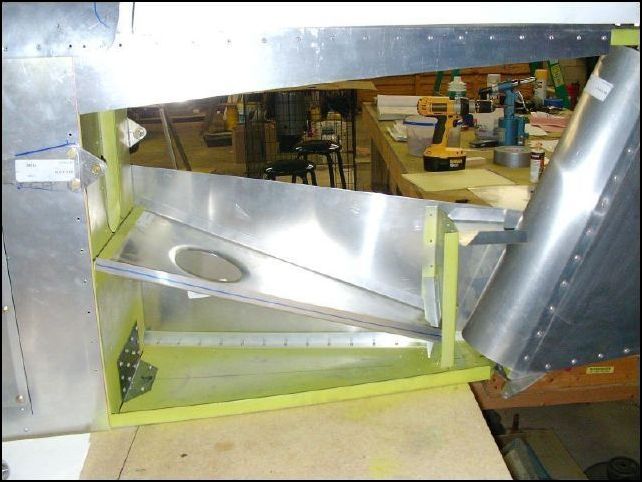

Position the diagonal tail panel to the fuselage and drill through the lower tail skin. Cleco in place. Be sure that the first 5 holes at the rear are A5 and the rest are A4.
Position the diagonal tail panel to the fuselage and drill through the lower tail skin. Cleco in place. Be sure that the first 5 holes at the rear are A5 and the rest are A4.
