CH-640 Fuselage Side skins sub-assembly (5 of 7)


[First] [Prev] [Home] [Index] [Next] [Last]

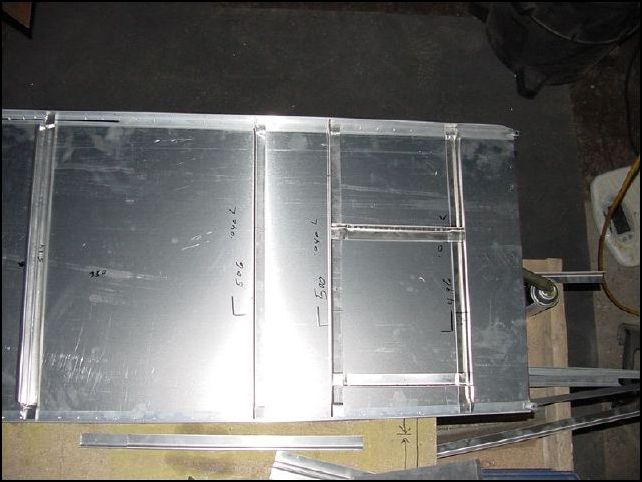

All Ls are .040 not standard Ls. Cut Ls 496mm 500mm and 506mm. These are your first three Ls. Then cut two Ls 222mm, these are the horizontal Ls for the access door (left side skin only). Jog the ends of the Ls and position the L's to the skin as per drawing.
All Ls are .040 not standard Ls. Cut Ls 496mm 500mm and 506mm. These are your first three Ls. Then cut two Ls 222mm, these are the horizontal Ls for the access door (left side skin only). Jog the ends of the Ls and position the L's to the skin as per drawing.
