CH-640 Fuselage Front Z and torque tube tunnel (10 of 70)
![[First]](../images/bl_first.gif)
|
![[Prev]](../images/bl_prev.gif)
|
![[Home]](../images/bl_home.gif)
|
![[Index]](../images/bl_index.gif)
|
![[Next]](../images/bl_next.gif)
|
![[Last]](../images/bl_last.gif)
|
|

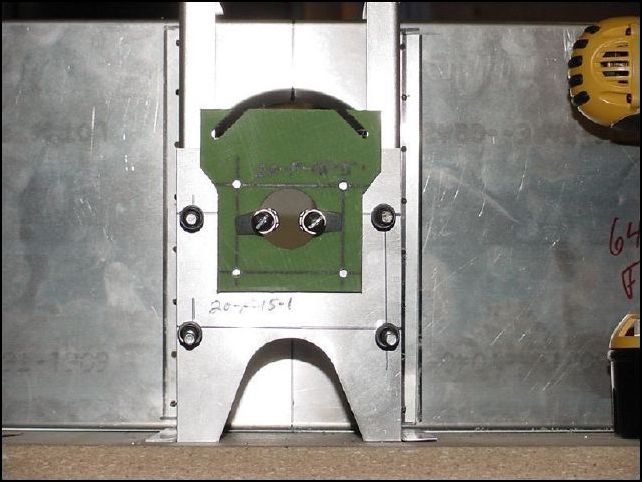

| Drill 20-F-15-5 for A6 rivets. Position 20-F-15-5 so that the bearing hole is lined up with the front panel hole on 20-F-15-1. Now drill through 20-F-15-5 into 20-F-15-1 for the 4 A6 rivet holes. The IPL says to drill 3/16" holes... however I have found that an A6 rivet does not fit in a 3/16" hole. I used a #10 drill bit and they fit very nicely now. |
|
|
|
|
|
|
|
